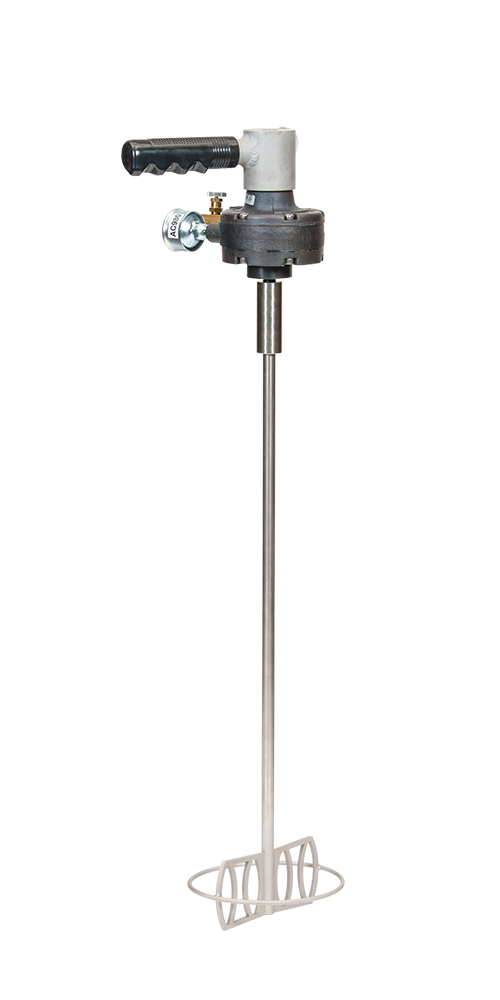

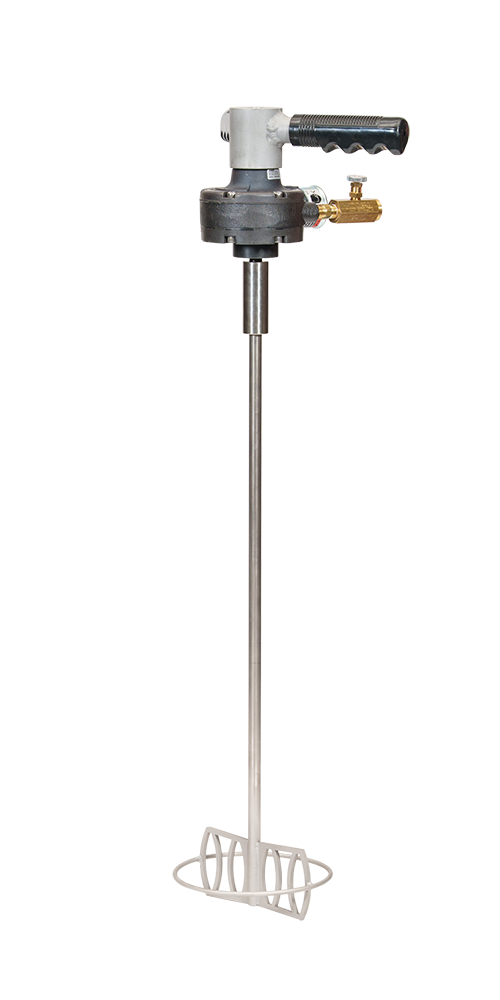

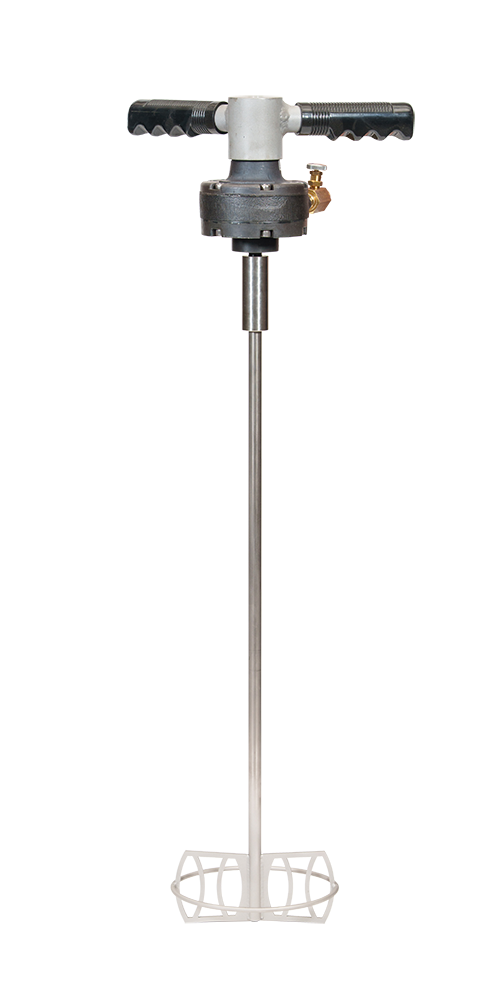

Hand Held Quick Mix
$1,600.00
ASC-QM-20-P
| CFM required @80psi |
Peak torque ft lb |
Peak torque in lb |
|---|---|---|
| 16 | 1.4 | 17 |
Capacity:
- 20-30 gallons
Features
- 3/4 HP air motor
- brass needle valve
- muffler
- 2 cushioned grip handles
- stainless steel coupler
- stainless steel shaft 1/2″ x 30″ long
- 1 stainless steel blade 7-1/2″ x 2-3/4″ x 3/16″
Need a gear reducer?
- Our Nema C-face gear reducers are available in a range of ratios from 5:1 to 60:1 on all of our products. Call us at 717-259-0112 or email info@asctornado.com for a custom design that fits your application.
Looking for electric power?
- We have Electric motor options available for all of our products. Click here for more information!
Full customization is available!
- Call us at 717-259-0112 or email info@asctornado.com to have one of our knowledgeable and friendly representatives help you get exactly what you need for your application.
Additional information
| Weight | 20 lbs |
|---|---|
| Dimensions | 50 × 16 × 8 in |
| Blade Size | 6" x 2-3/4" x 3/16", 7-1/2" x 2-3/4" x 3/16" |
| Shaft Size | 1/2" x 24", 1/2" x 30" |
Related products
-

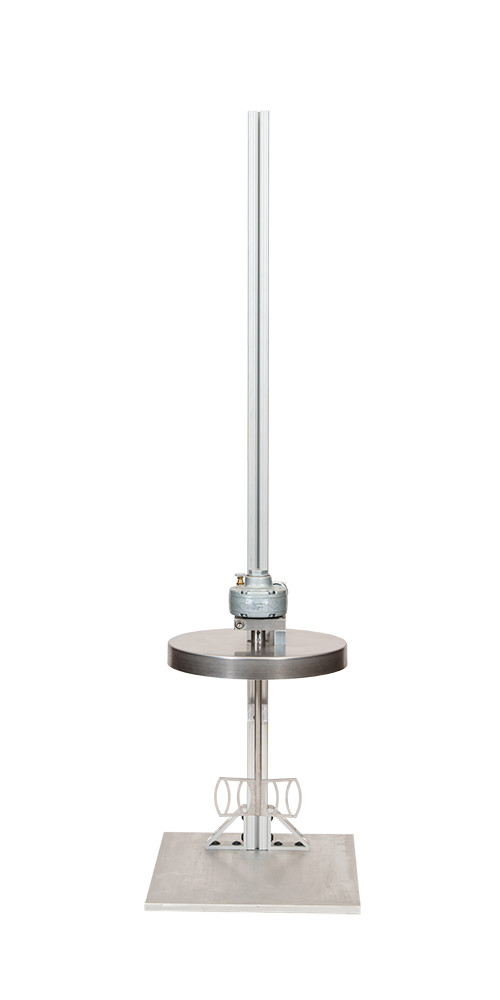

Add to cartMORE INFOStand Mixer
$2,100.00ASC-SM-5-P-A
CFM required
@80psiPeak torque
ft lbPeak torque
in lb20 1.4 17 Capacity:
- 5 gallons
Features
- 3/4 HP air motor
- brass needle valve
- muffler
- aluminum stand with manual adjustability
- stainless steel coupler
- stainless steel shaft 1/2″ x 12″ long
- stainless steel blade 6″ x 2-3/4″ x 3/16″
Need an elevator and air controls?
- Part number ASC-SM-5-P-C-A same as above with elevator and air controls.
Need a gear reducer?
- Our Nema C-face gear reducers are available in a range of ratios from 5:1 to 60:1 on all of our products. Call us at 717-259-0112 or email info@asctornado.com for a custom design that fits your application.
Looking for electric power?
- We have Electric motor options available for all of our products. Click here for more information!
Full customization is available!
- Call us at 717-259-0112 or email info@asctornado.com to have one of our knowledgeable and friendly representatives help you get exactly what you need for your application.
5 gallons -
Add to cartMORE INFO
Tote Mixer Unit
$1,480.00ASC-30-TM
CFM required
@80psiPeak torque
ft lbPeak torque
in lb20 1.4 17 Capacity:
- 30 gallons
Features
- 3/4 HP air motor
- brass needle valve
- muffler
- stainless steel coupler
- stainless steel shaft 1/2″ x 33″ long
- stainless steel shaft housing with bushing
- 2 stainless steel blades 6″ x 2-3/4″ x 3/16″
Need a gear reducer?
- Our Nema C-face gear reducers are available in a range of ratios from 5:1 to 60:1 on all of our products. Call us at 717-259-0112 or email info@asctornado.com for a custom design that fits your application.
Looking for electric power?
- We have Electric motor options available for all of our products. Click here for more information!
Full customization is available!
- Call us at 717-259-0112 or email info@asctornado.com to have one of our knowledgeable and friendly representatives help you get exactly what you need for your application.
30 gallons -
Select options This product has multiple variants. The options may be chosen on the product page
Mixer Unit – Retrofits to 30/55 gal. Drum Covers
$1,200.00 – $1,520.00ASC 1-2-55-P
CFM required
@80psiPeak torque
ft lbPeak torque
in lb20 1.4 17 Capacity:
- 30/55 gallons
Features
- 3/4 HP air motor (1-1/2 HP available)
- brass needle valve
- muffler
- mounting bracket
- stainless steel coupler
- stainless steel shaft 1/2″ x 33″ long
- 2 welded stainless steel blades 6″ x 2-3/4″ x 3/16″
Need more power?
- Part number ASC-1-2-55-P-2 same as above with 1-1/2 HP air motor (requires 50 CFM @80psi for peak torque of 33 in lb, 2.8 ft lb.).
Looking for electric power?
- We have Electric motor options available for all of our products. Click here for more information!
Need a gear reducer?
- Our Nema C-face gear reducers are available in a range of ratios from 5:1 to 60:1 on all of our products. Call us at 717-259-0112 or email info@asctornado.com for a custom design that fits your application.
Full customization is available!
- Call us at 717-259-0112 or email info@asctornado.com to have one of our knowledgeable and friendly representatives help you get exactly what you need for your application.
30/55 gallons
