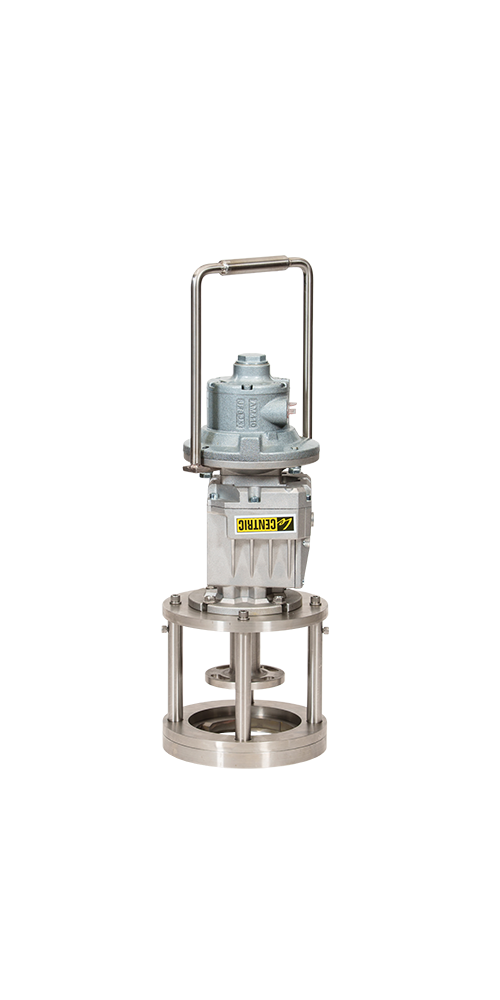

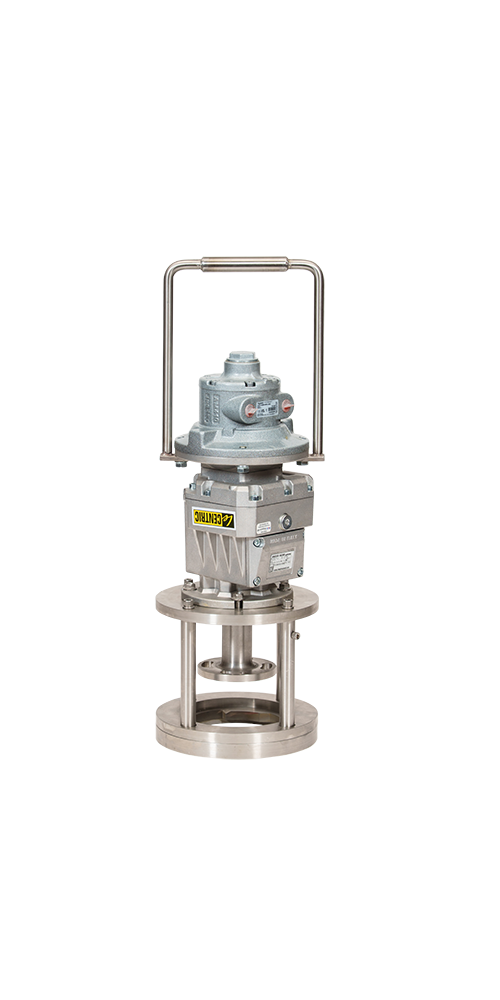

Heavy Duty Pad Flange Tote Drive Mixer
$5,600.00
ASC-TD
| CFM required @80psi |
Peak torque ft lb |
Peak torque in lb |
|---|---|---|
| 50 | 2.8 | 33 |
Capacity:
- 55-300 gallons
Features
- 1-1/2 HP Nema 56 C-face air motor
- brass needle valve
- muffler
- stainless steel coupler

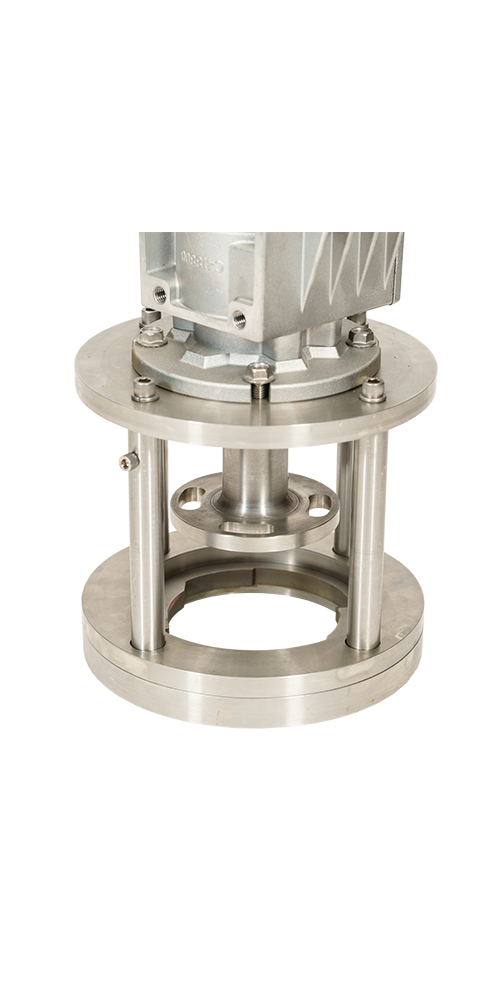

- pad flange design
- direct replacement for Lightnin Series 70
- pre-lubed gear reducer (5:1 to 60:1 available)
- stainless steel lifting handle
* product shown with guarding removed
Looking for electric power?
- We have Electric motor options available for all of our products. Click here for more information!
Full customization is available!
- Call us at 717-259-0112 or email info@asctornado.com to have one of our knowledgeable and friendly representatives help you get exactly what you need for your application.
Additional information
| Weight | 72 lbs |
|---|---|
| Dimensions | 30 × 30 × 16 in |
