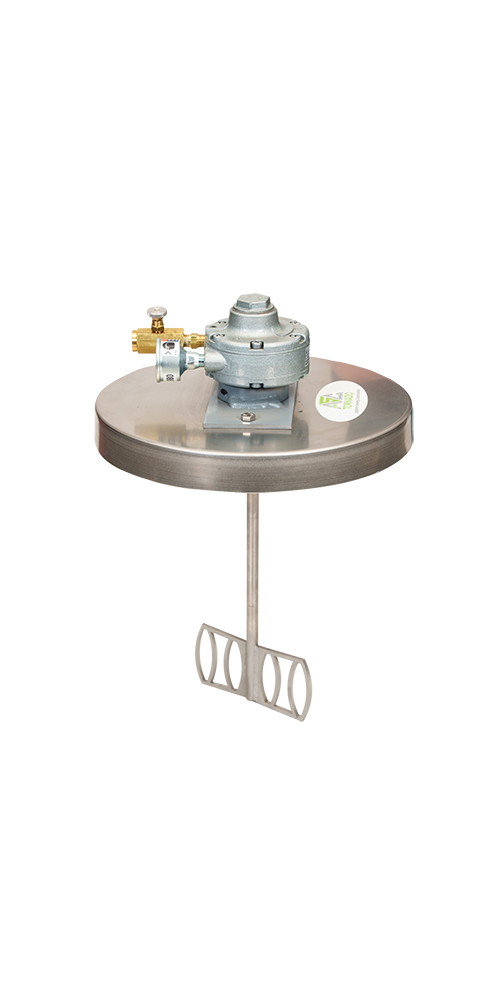

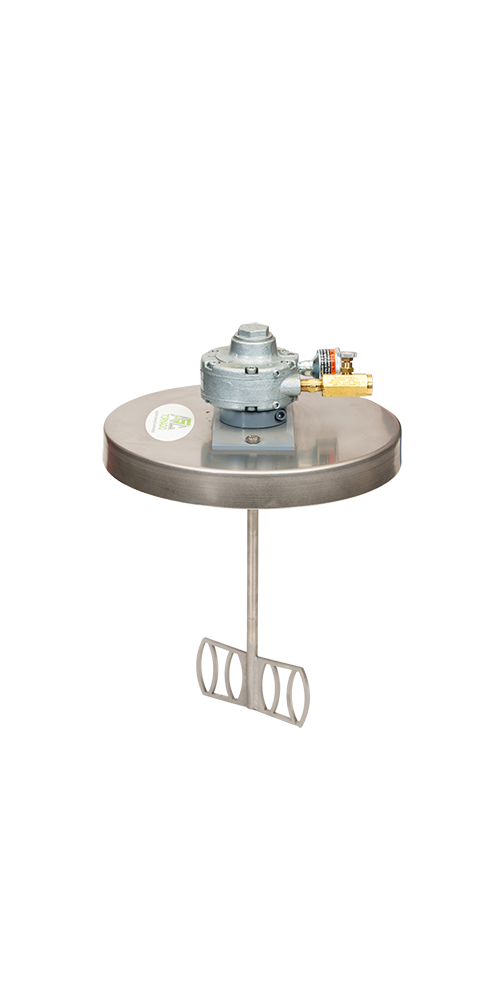

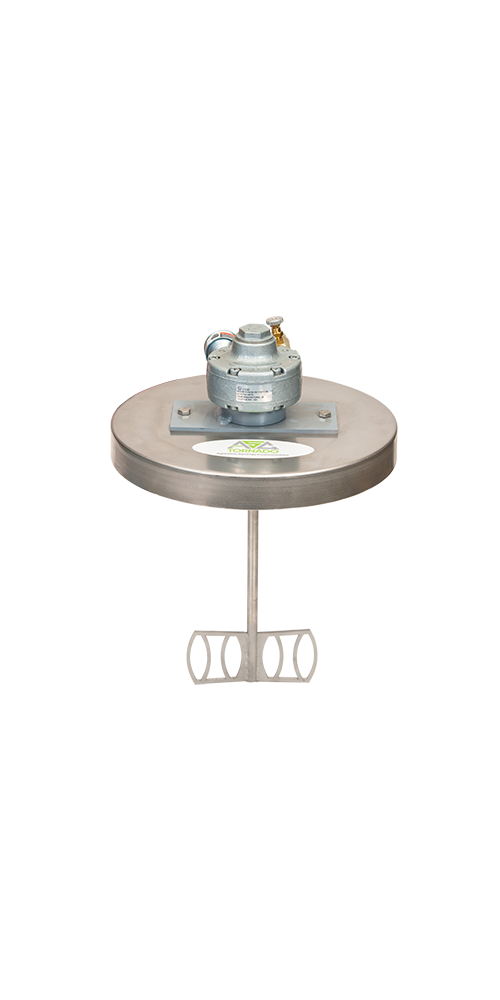

Mixer Unit
Price range: $1,250.00 through $1,400.00
ASC-5-4-2-P/C
| CFM required @80psi |
Peak torque ft lb |
Peak torque in lb |
|---|---|---|
| 20 | 1.4 | 17 |
Capacity:
- 5 gallons
Features
- 3/4 HP air motor
- brass needle valve
- muffler
- stainless steel coupler
- 5 gallon stainless steel cover
- stainless steel shaft 1/2″ x 12″ long
- stainless steel blade 6″ x 2-3/4″ x 3/16″
Don’t need a pail cover?
- Part number ASC-5-4-2-P same as above without pail cover
Need an observation port?
- Observation ports can be added to any of our covers.
Need a gear reducer?
- Our Nema C-face gear reducers are available in a range of ratios from 5:1 to 60:1 on all of our products. Call us at 717-259-0112 or email info@asctornado.com for a custom design that fits your application.
Looking for electric power?
- We have Electric motor options available for all of our products. Click here for more information!
Full customization is available!
- Call us at 717-259-0112 or email info@asctornado.com to have one of our knowledgeable and friendly representatives help you get exactly what you need for your application.
Additional information
| Weight | 16 lbs |
|---|---|
| Dimensions | 14 × 14 × 14 in |
| Pail Cover | Yes, No |
